SPECIFICATIONS

Brand Name: capacity.Li

Certification: CE,RoHS

Choice: yes

Compatible Devices: Battery

Data Transmission: no

Display screen: Yes

GaN: no

High-concerned chemical: None

Intelligent Charge: Yes

Max. Output Power: 1500W

Model Number: LI-36A

Origin: Mainland China

Output Power: ＞750

Output interface: Customizable

Package: Yes

Power Source: Ac

Power plug: Customizable

Quick charge: Yes

Type: Electric

Use: Standard Battery

Voltage: 3.7 В

Voltage range: High voltage (50-1000V DC, 75-1000V AC)

Weakened magnetization with charge: yes

semi_Choice: yes

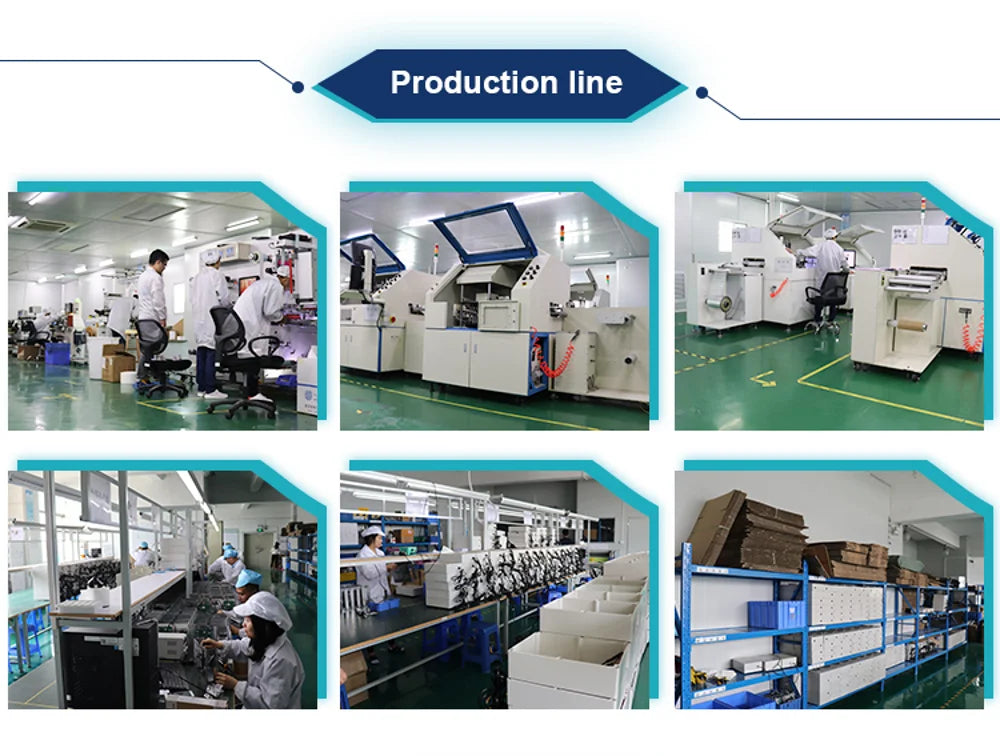

Welcome to our factory. Capacity. Li is our brand and we have processes for lithium batteries, lithium iron phosphate batteries, and chargers. We accept custom batteries and cannot update all items here. If you have any other requirements, please contact the customer and let me know your requirements

The charger 50A60A85A100A and battery 100AH-250AH are currently in stock at warehouses in Europe and Moscow. If you are not familiar with this place, please contact customer service! Hurry up and buy!



For charger buyers, please refer to detailed operation videos or text introductions. Be careful not to connect the positive and negative poles in opposite directions. The correct writing style is+TO+, - TO -. After being fully charged, the current displayed is 0A. Do not adjust the voltage while charging. Do not connect the battery before adjusting the voltage, otherwise it may burn out the charger motherboard. The screen displays the actual current value, not the current value you adjusted. Please consider the battery capacity and the maximum current value of the BMS for the current size. When the battery is fully charged, the current will be very small, with a full charge current of 0. It is recommended to discharge the battery before testing. If you have any questions, please contact customer service.



Do not connect the battery before adjusting the voltage, otherwise it may burn out the charger motherboard. The screen displays the actual current value, not the current value you adjusted. Please consider the battery capacity and the maximum current value of the BMS for the current size. When the battery is fully charged, the current will be very small, with a full charge current of 0. It is recommended to discharge the battery before testing.



When the voltage cannot be adjusted up, it is recommended to increase the current key slightly to the right before adjusting the voltage.

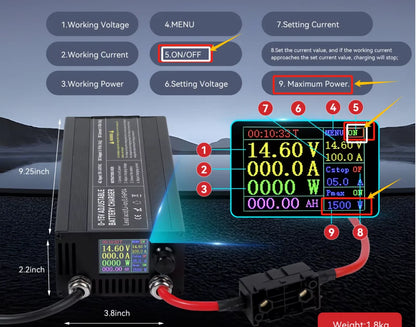

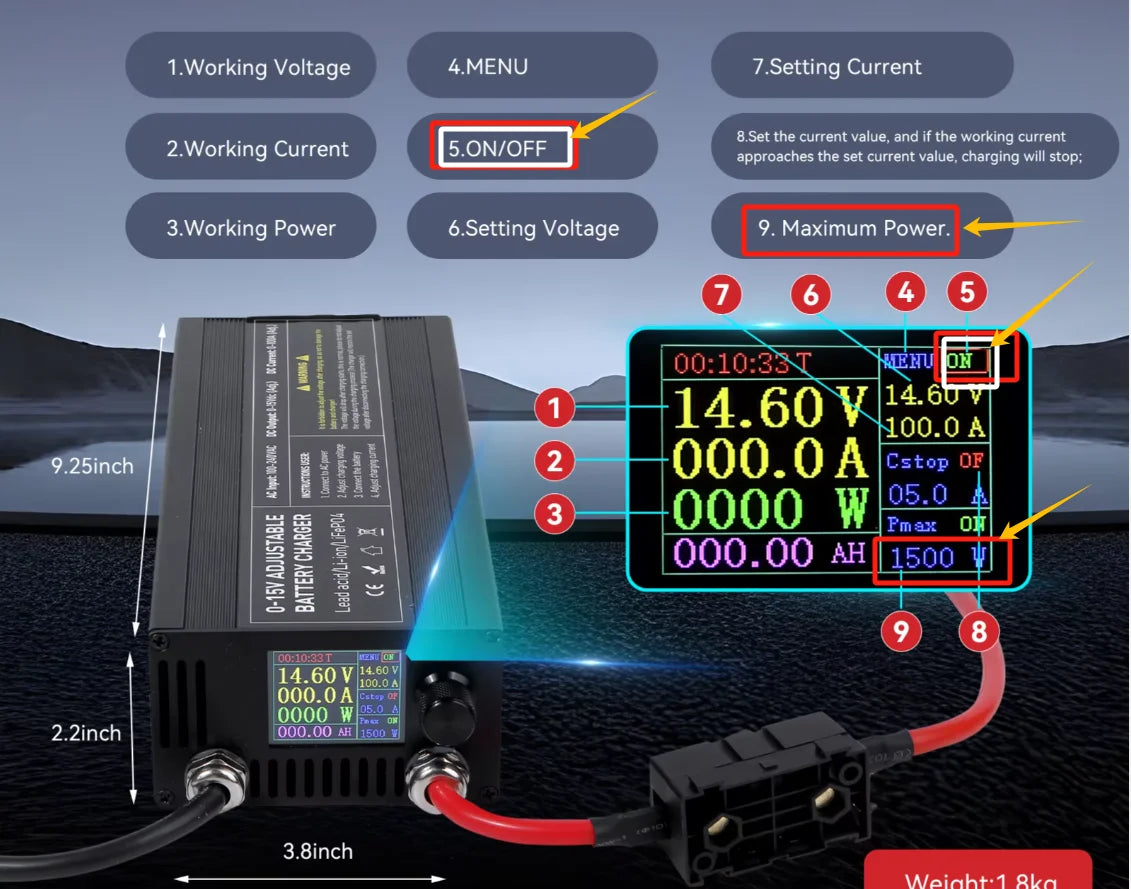

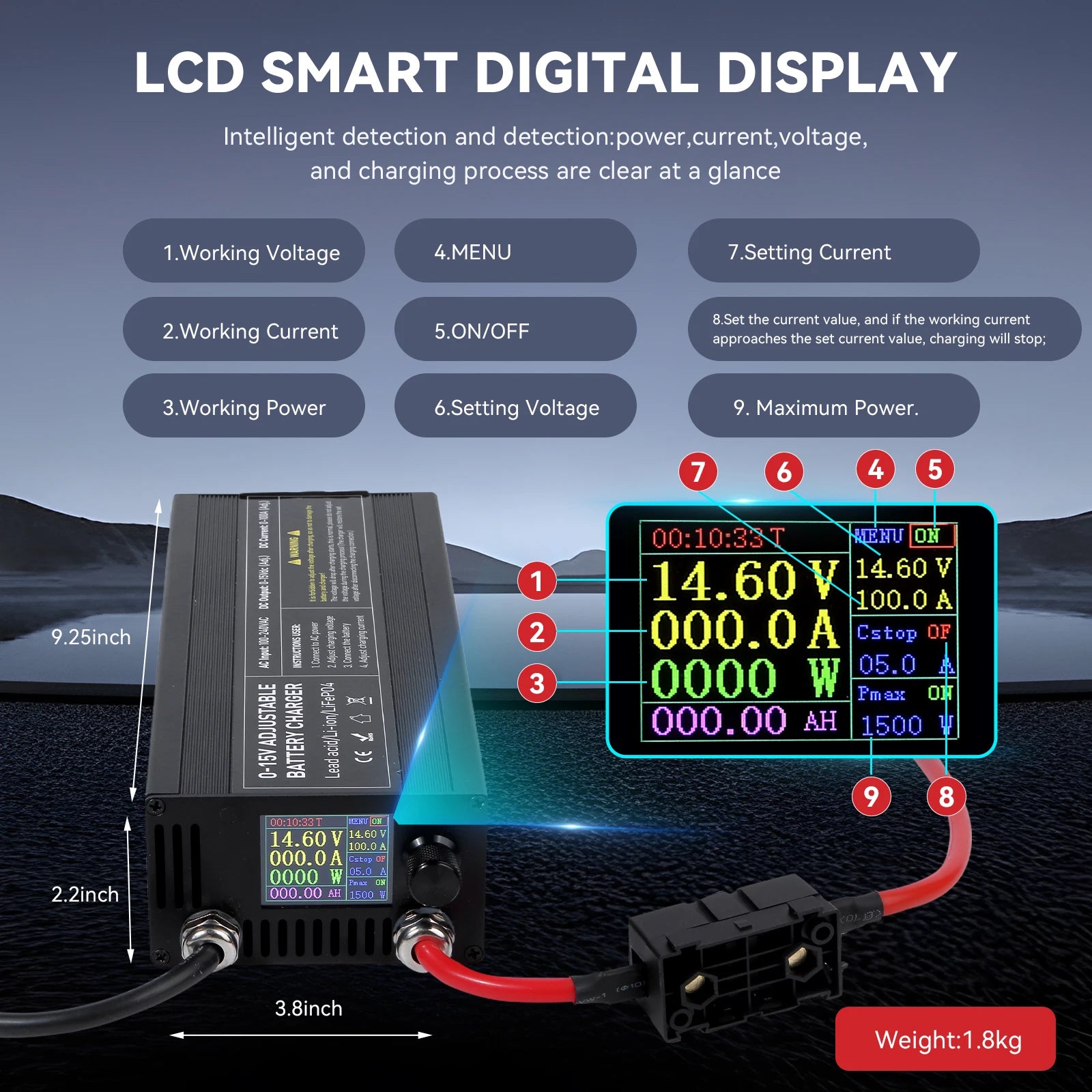

The following is an introduction to the new 2025 large screen charger. When connecting the power supply, please be sure to first press the button to turn on the charger, so that the OFF button in the upper right corner of the screen is changed to ON (icon 5). The actual current and voltage are displayed on the left side of the screen, and the set voltage and current are displayed on the right side. Do not modify the parameters set on the right side (icon 9). Especially do not change the power value. Otherwise, there will be no warranty!

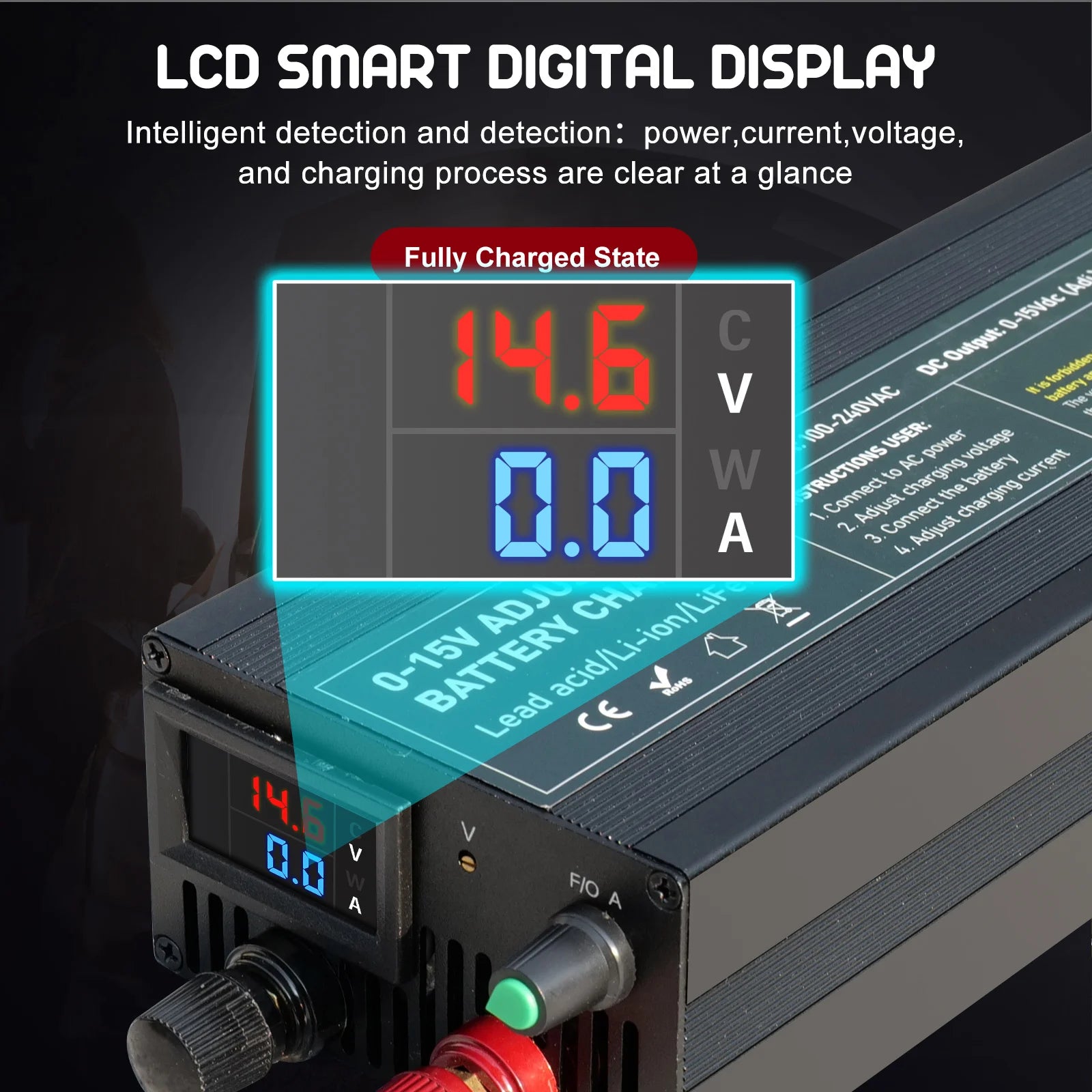

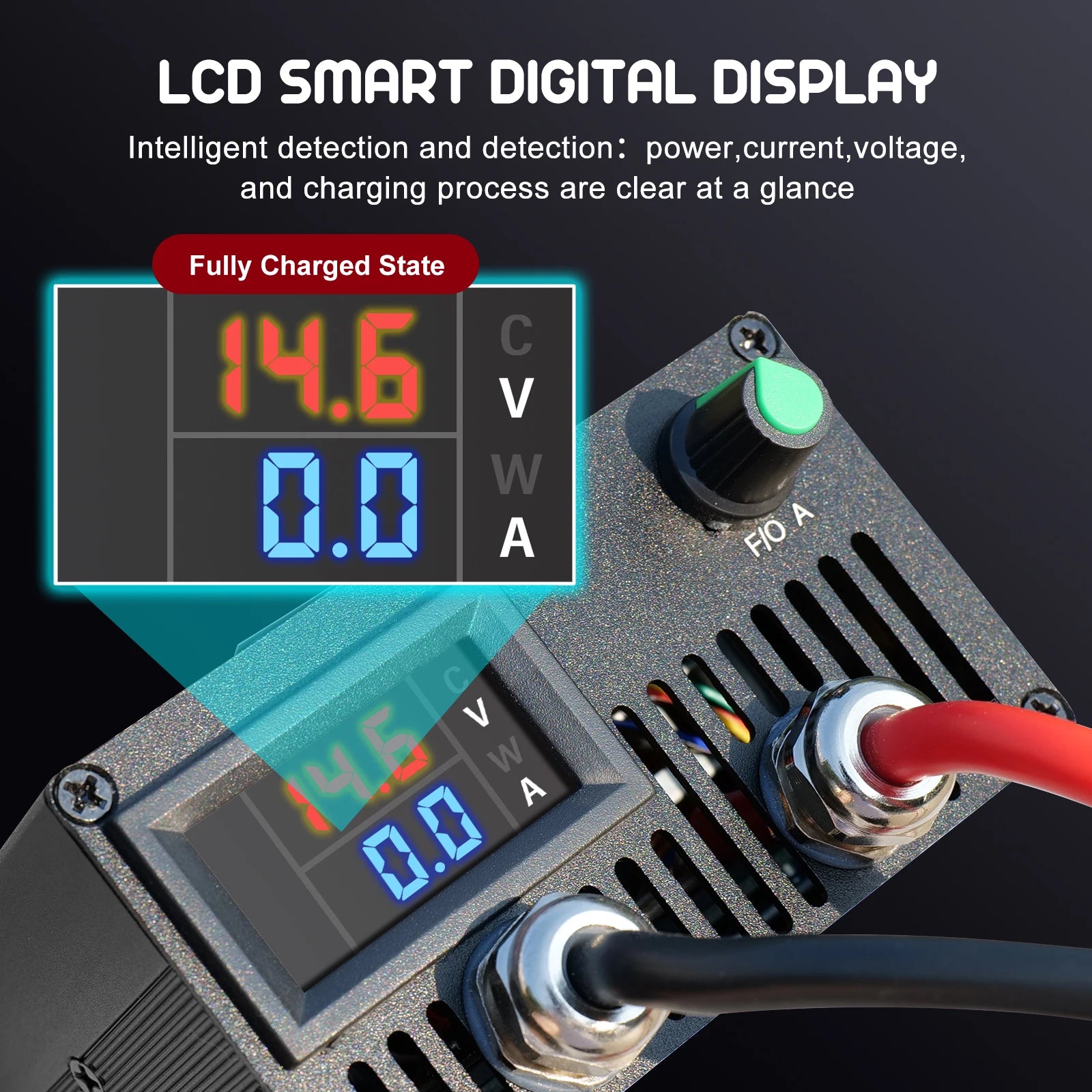

Please refer to the position indicated by the arrow in the figure below. When fully charged, the voltage displayed on the left is the charging voltage, and the current is 0!

Operation videohttps://video.aliexpress-media.com/seller/play/5000231650070.mp4

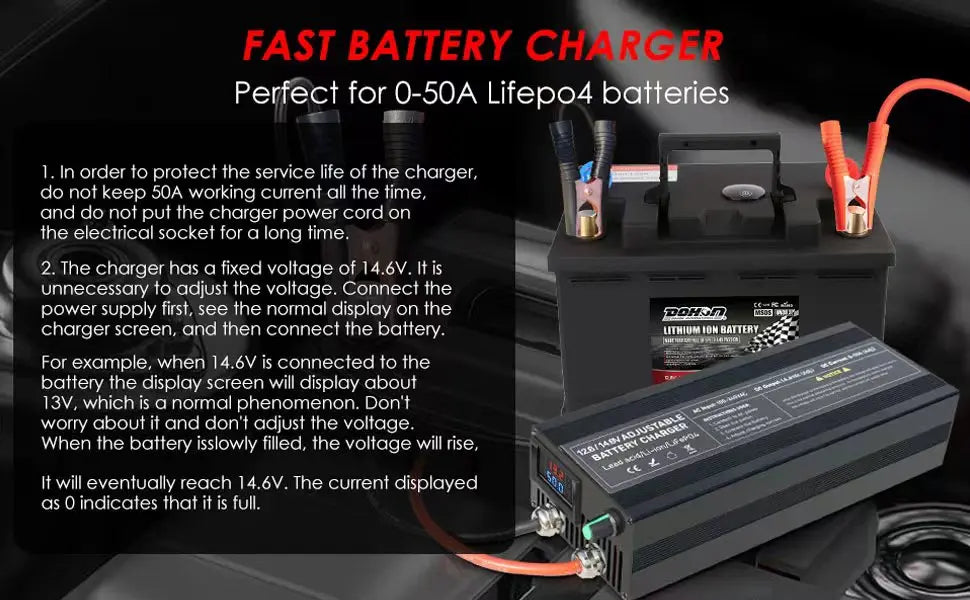

The following is an introduction to the parameters of the fixed voltage model 50A simple model. Please note that the voltage is fixed at 14.6V. Non adjustable, current 50A is not adjustable.

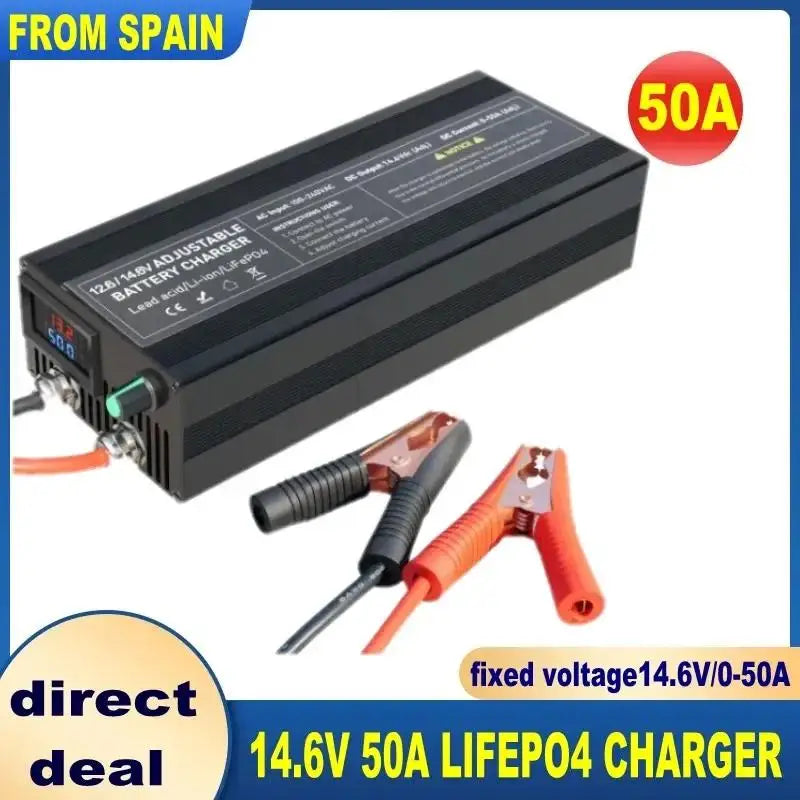

50A simple （White style）
Input voltage: 100-240V
Output voltage: 14.6V（Non adjustable）
Output current: 50A
Charging method: CC-CV
External dimensions: 230 * 86 * 38 (mm)
Cooling method: air cooling
Charging status: red light when charging, green light when fully charged

Standard cable configuration:10AWG. If you need a thicker cable, please contact customer service for an additional fee to replace it.

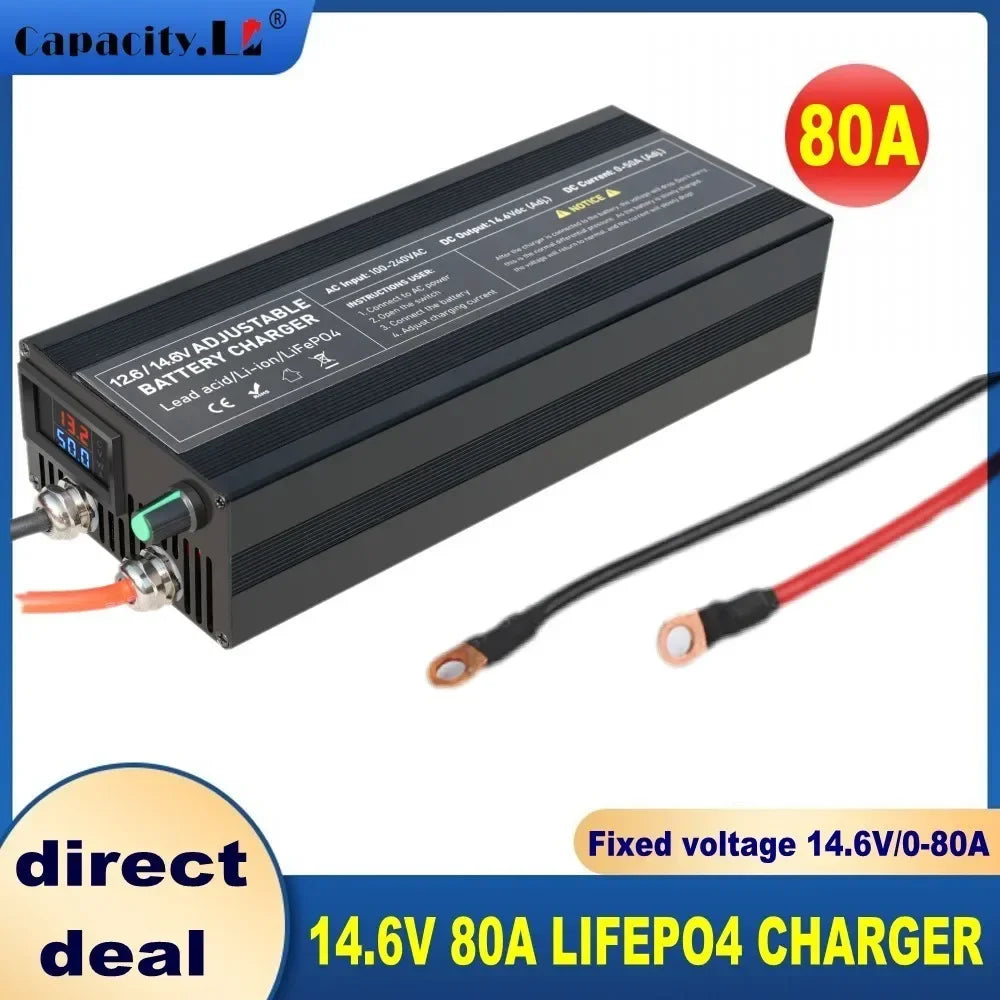

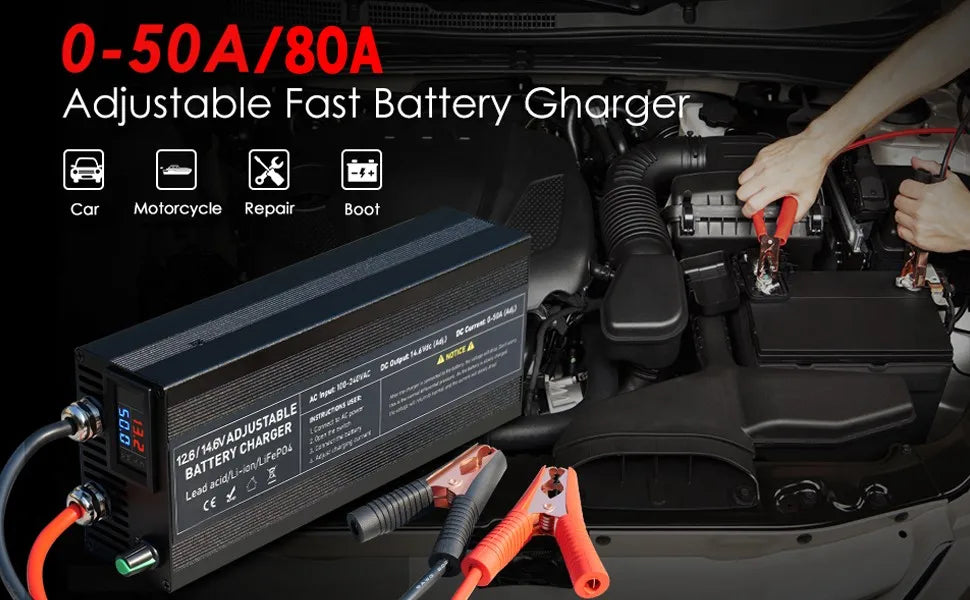

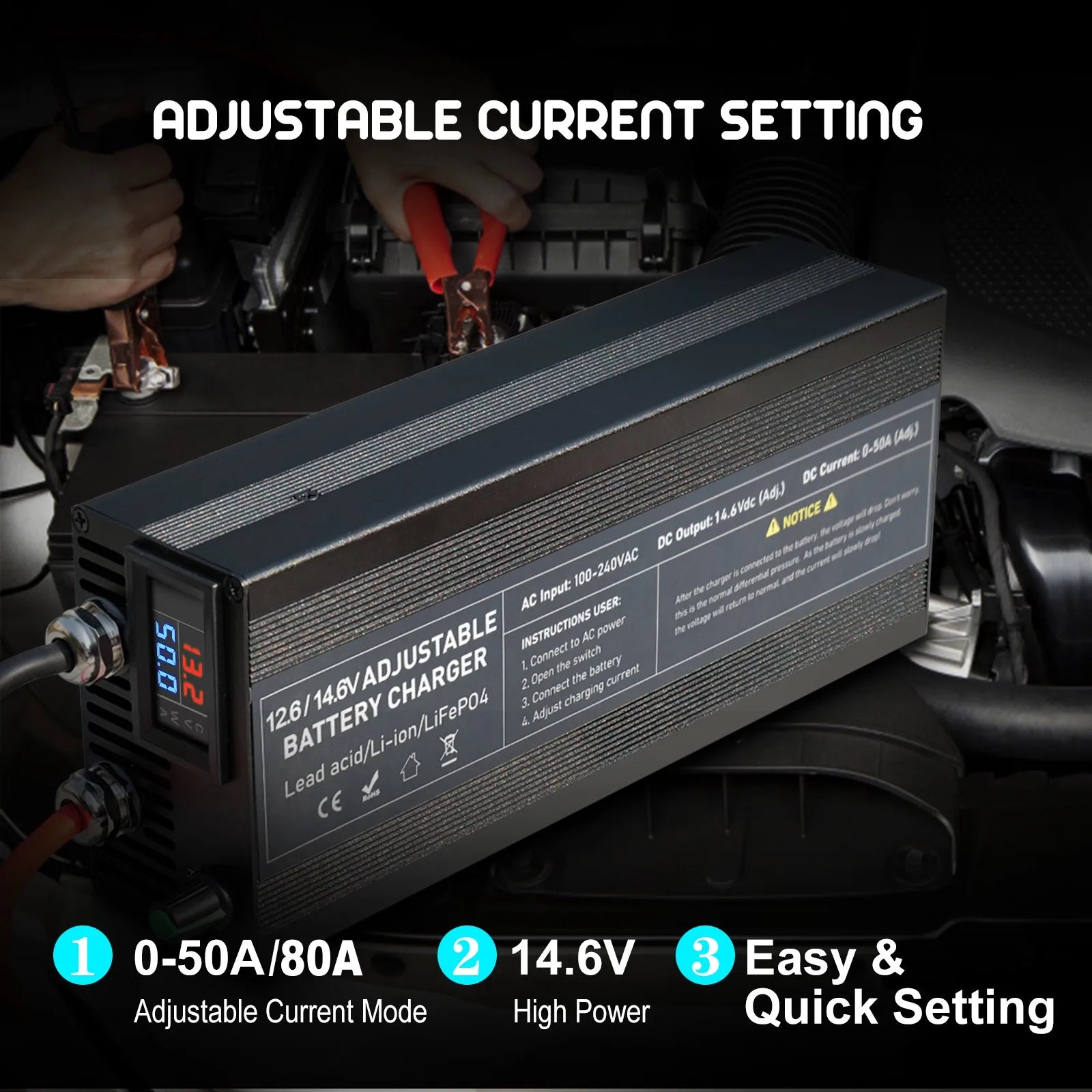

50A/80A Luxury Edition Fixed Edition (Black shell)
Input voltage: 100-240V
Output voltage: 14.6V（Non adjustable）
Output current: 0-50A/80A, adjustable
Charging method: CC-CV
Appearance dimensions: 235 * 97 * 56 (mm)
Cooling method: air cooling
Charging status: screen display

Standard cable configuration:10AWG. If you need a thicker cable, please contact customer service for an additional fee to replace it.

Operation videohttps://video.aliexpress-media.com/seller/play/5000222350655.mp4

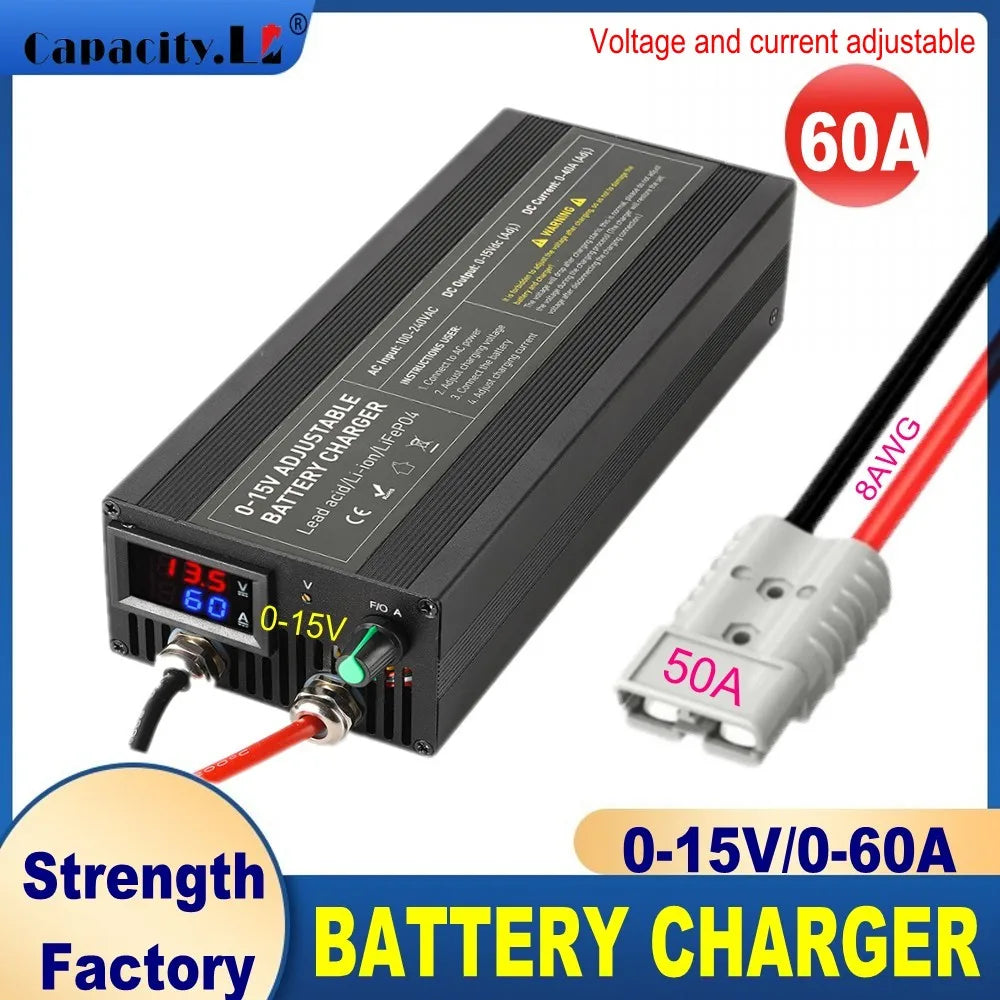

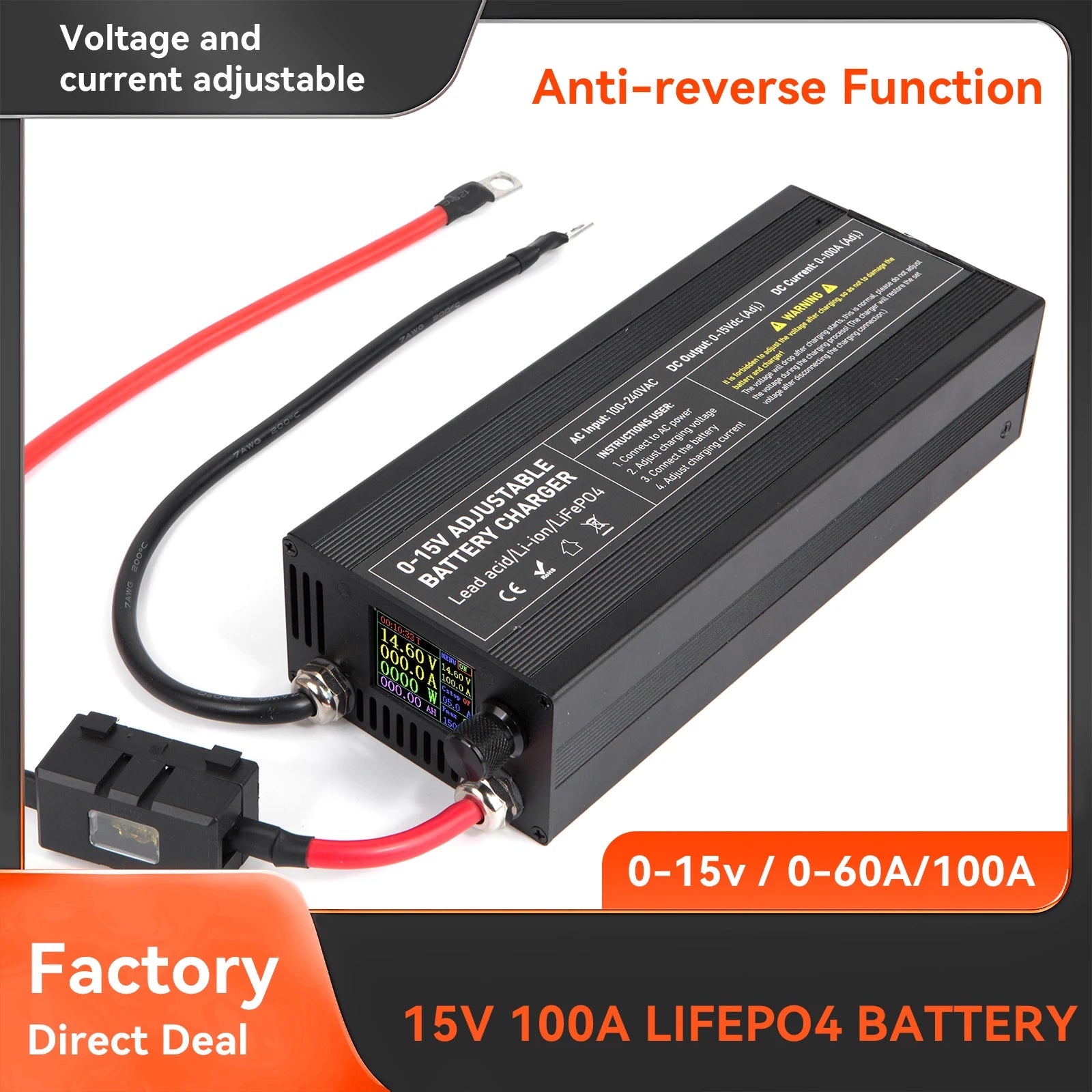

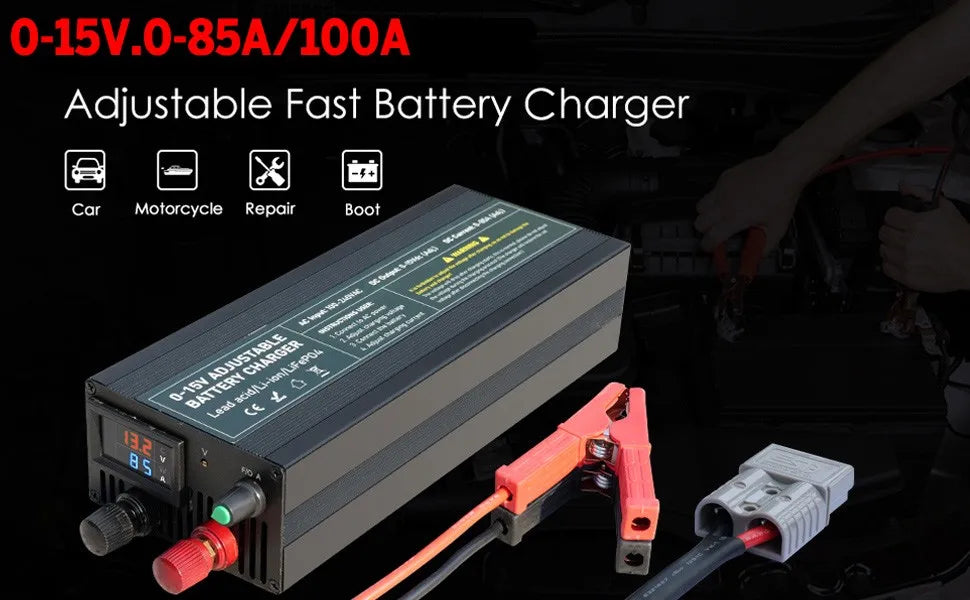

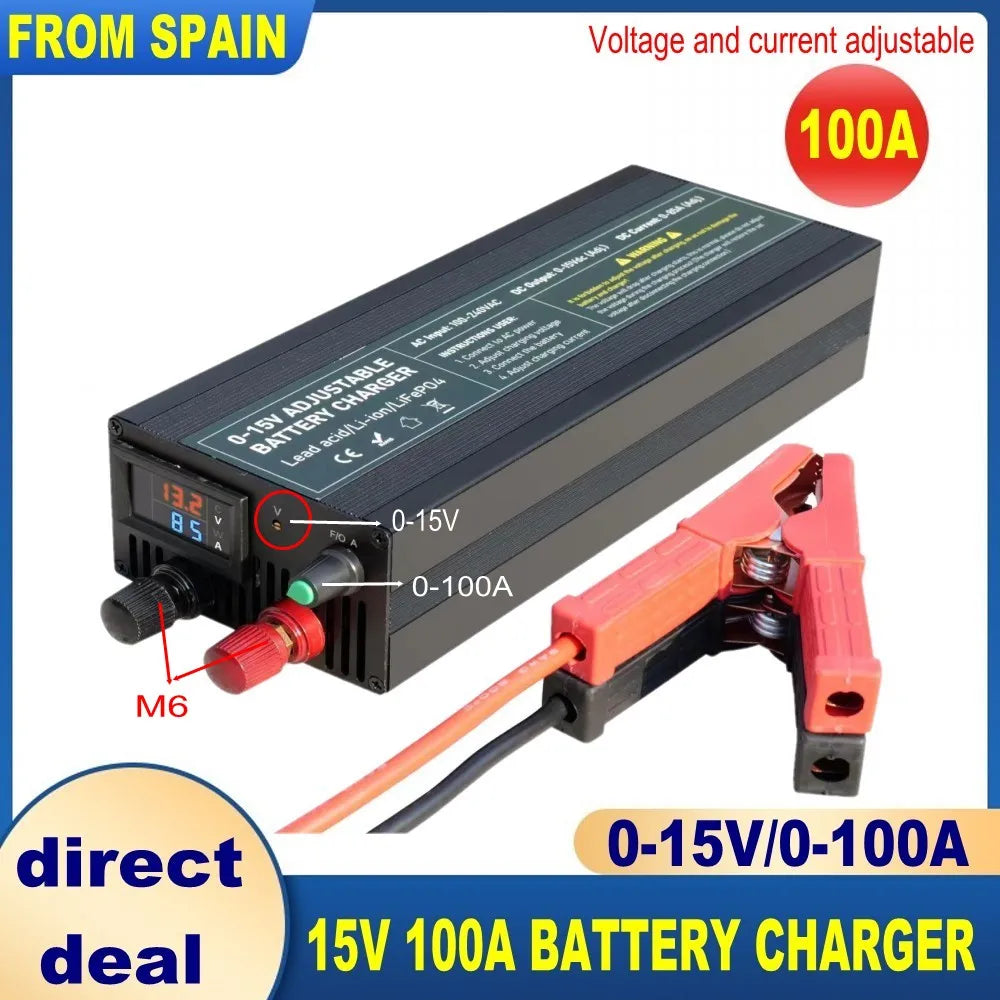

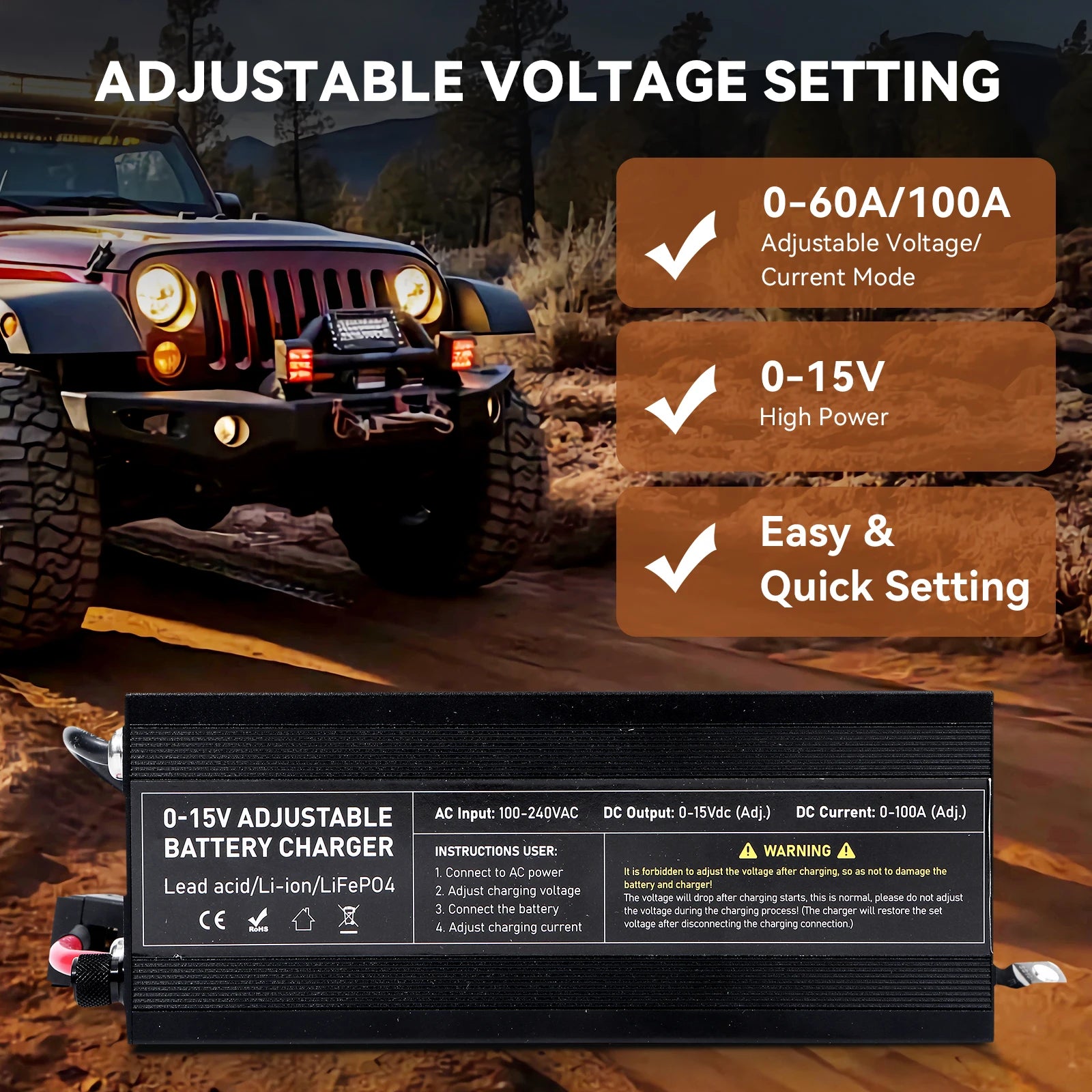

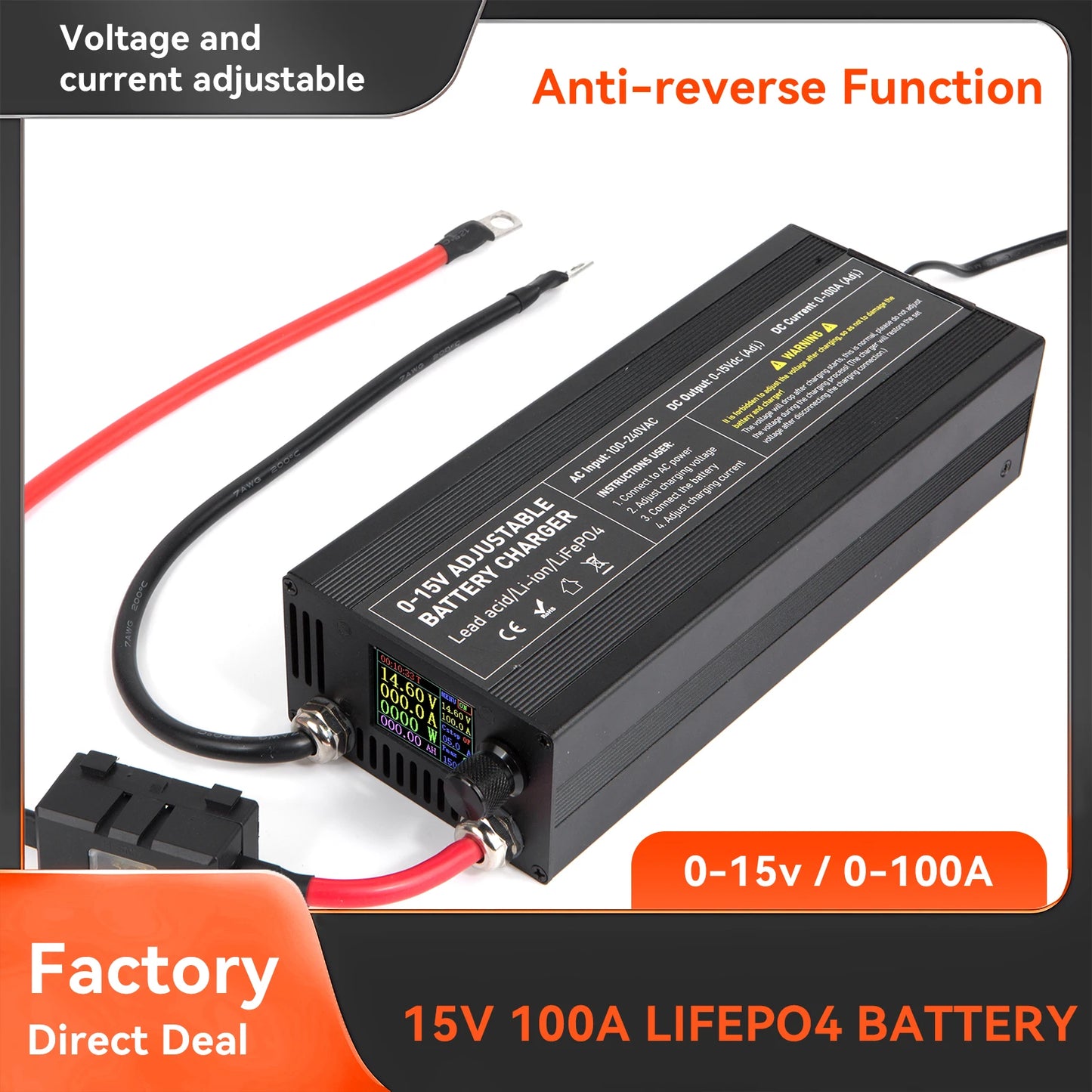

60A/85/100A Luxury Edition Adjustable

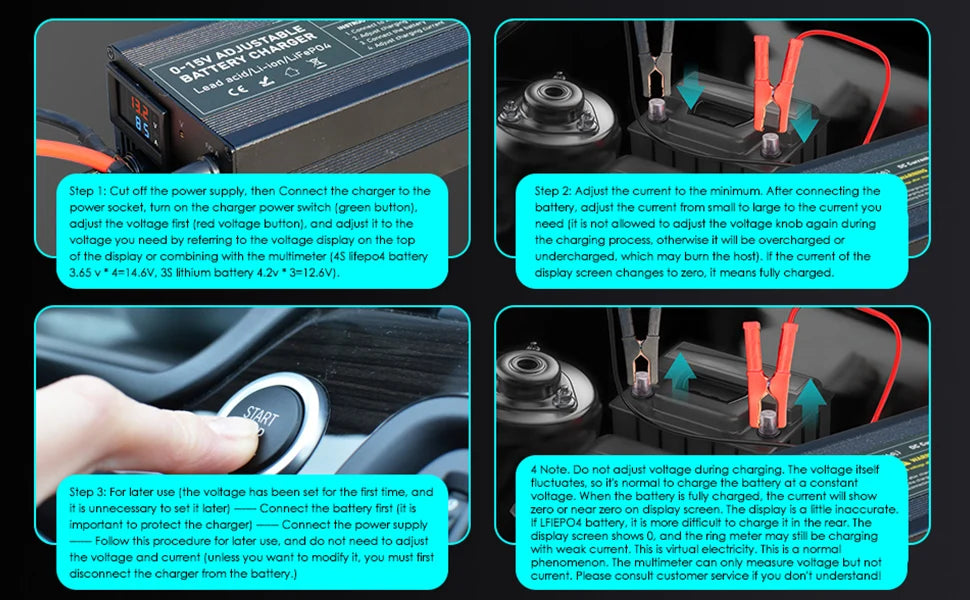

Special instructions for 60A/85A/100A charger: first plug the charger into the power supply - look at the voltage - turn the current on key higher - then adjust the voltage - then connect the load (+To+, - To -) - finally adjust the current. Do not connect the battery before adjusting the voltage, otherwise it will burn out the charger motherboard. Adjust the current again. Do not connect the battery before adjusting the voltage, otherwise it will burn out the charger motherboard. The screen displays the actual current value, which is not the current value you adjusted. Please consider the battery capacity and the maximum BMS current value for the current size. When the battery is fully charged, the current will be very small, with a full charge current of 0. It is recommended to discharge the battery before testing.
Input voltage: 100-240V
Output voltage: 0-15V
Output current: 0-60A/85A/100A, adjustable
Charging method: CC-CV
Appearance dimensions: 235 * 97 * 56 (mm)
Cooling method: air cooling
Charging status: screen display

Standard cable configuration:8AWG. If you need a thicker cable, please contact customer service for an additional fee to replace it.

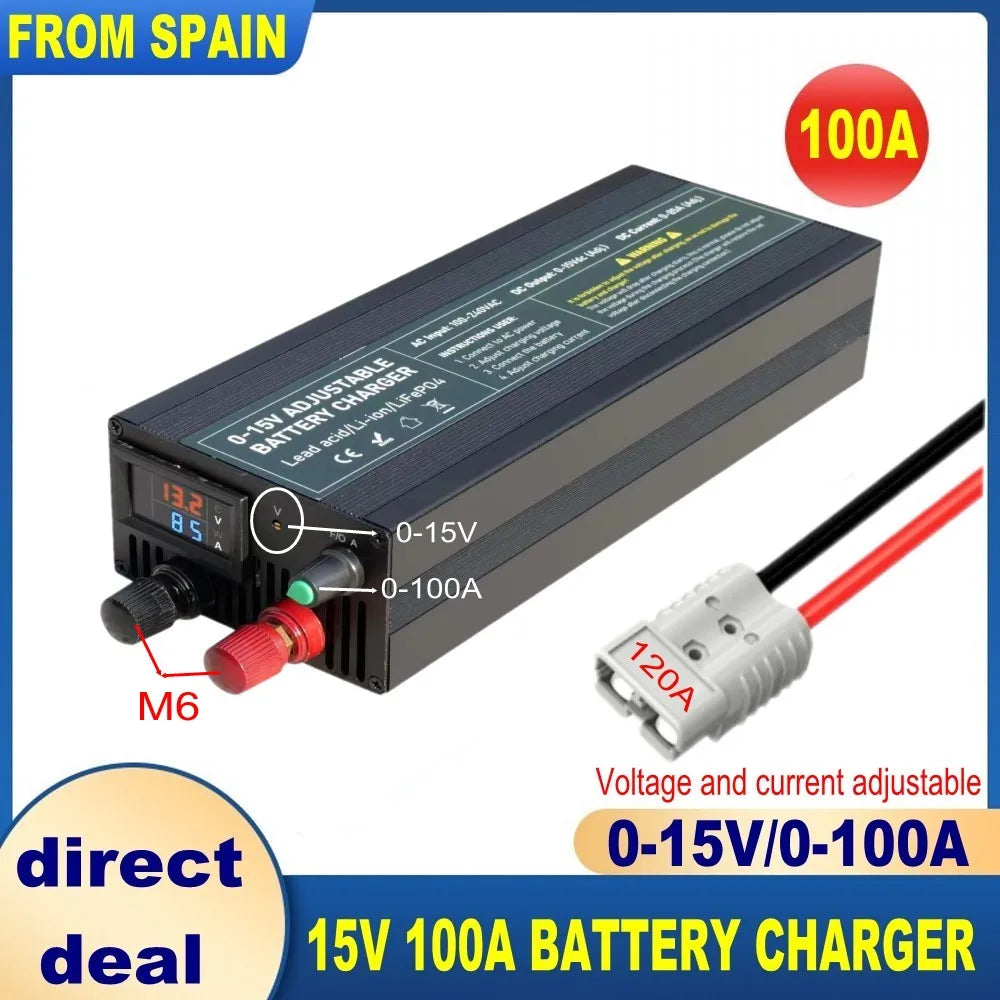

100A charger Anderson is 120A

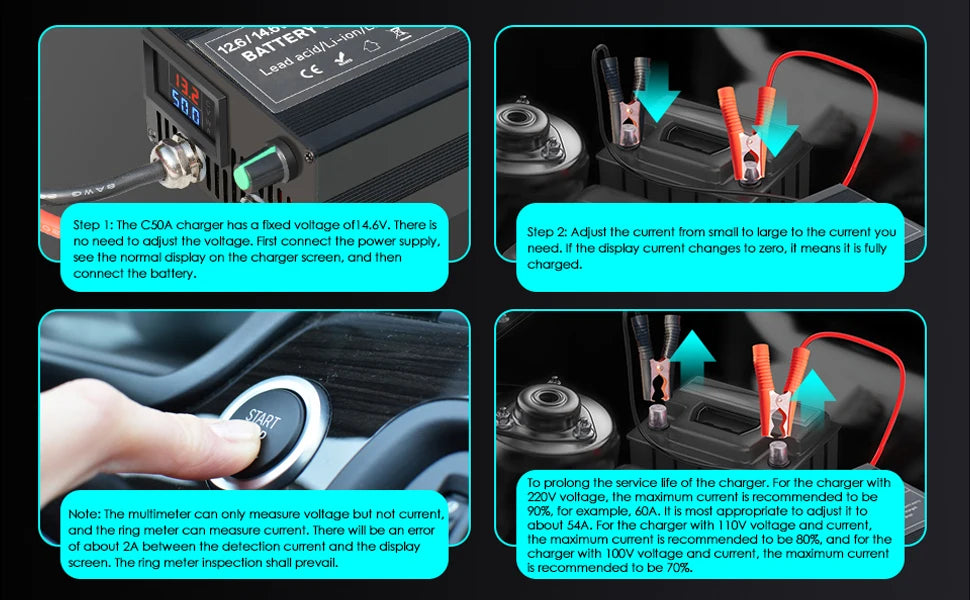

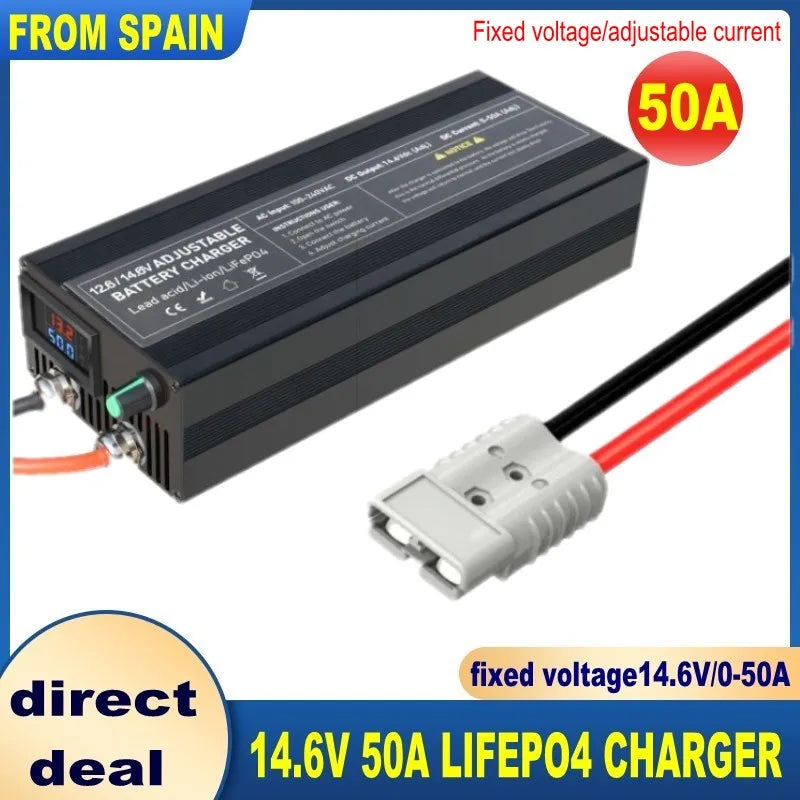

The following is a detailed introduction to the fixed voltage model 50A/80A, please note that the voltage is fixed at 14.6V. Non adjustable, current adjustable
Operation videohttps://video.aliexpress-media.com/seller/play/5000204562972.mp4

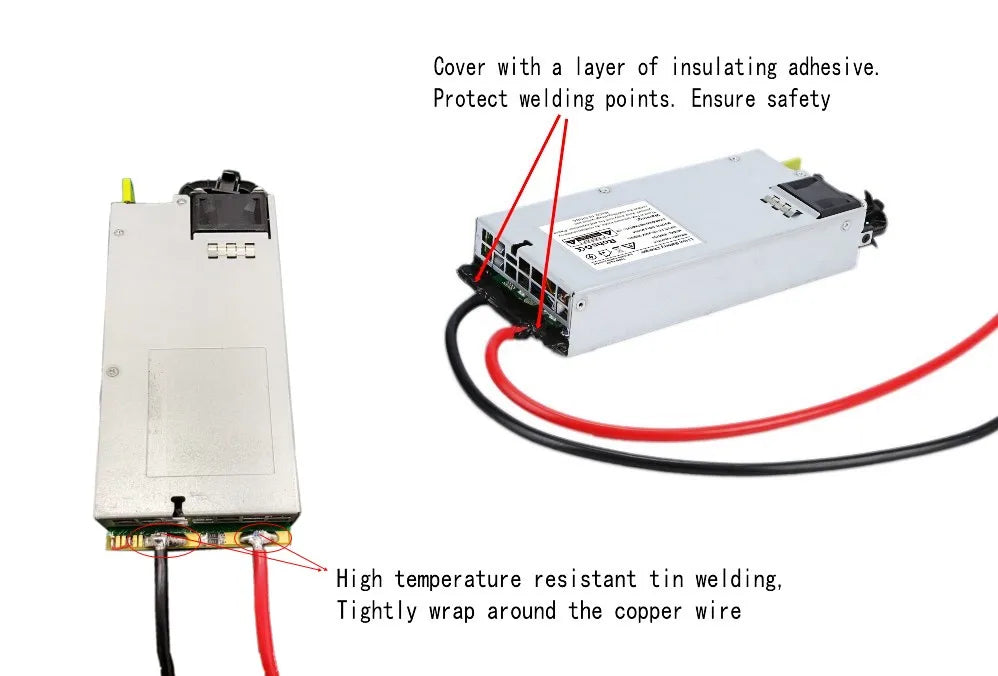

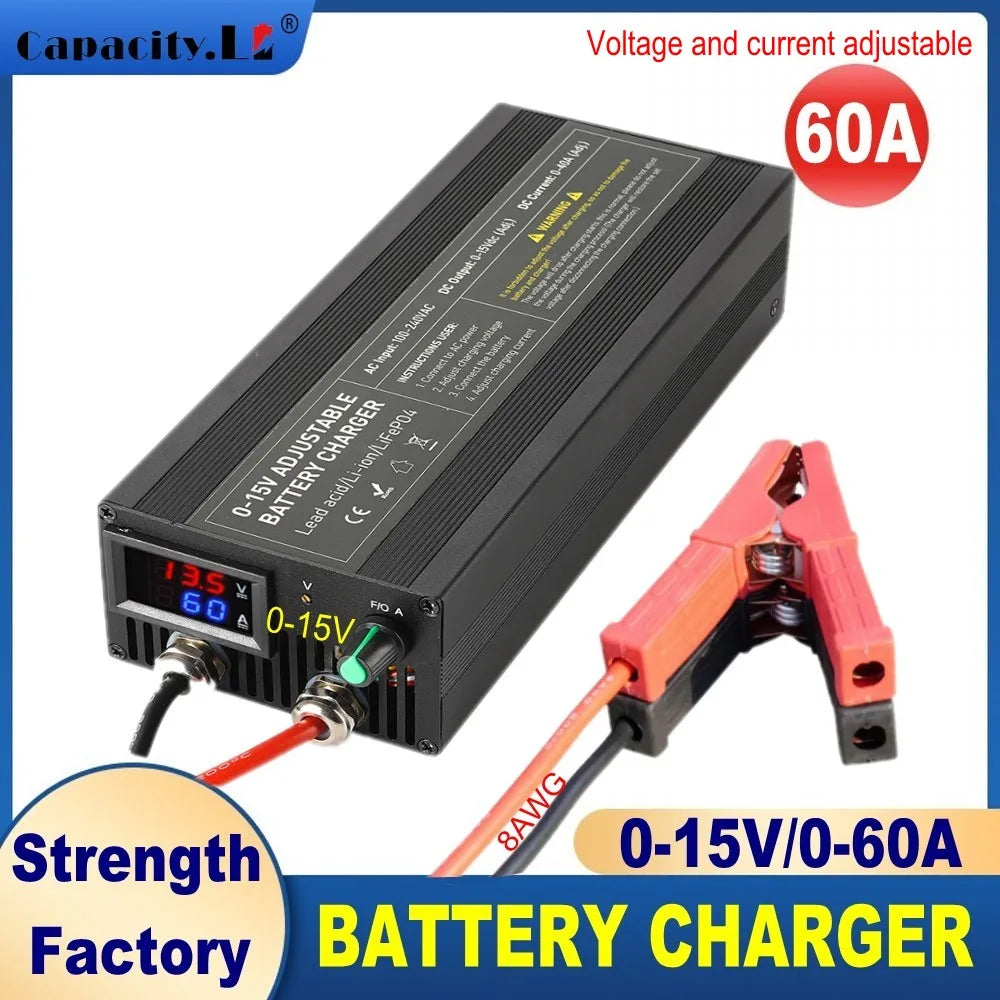

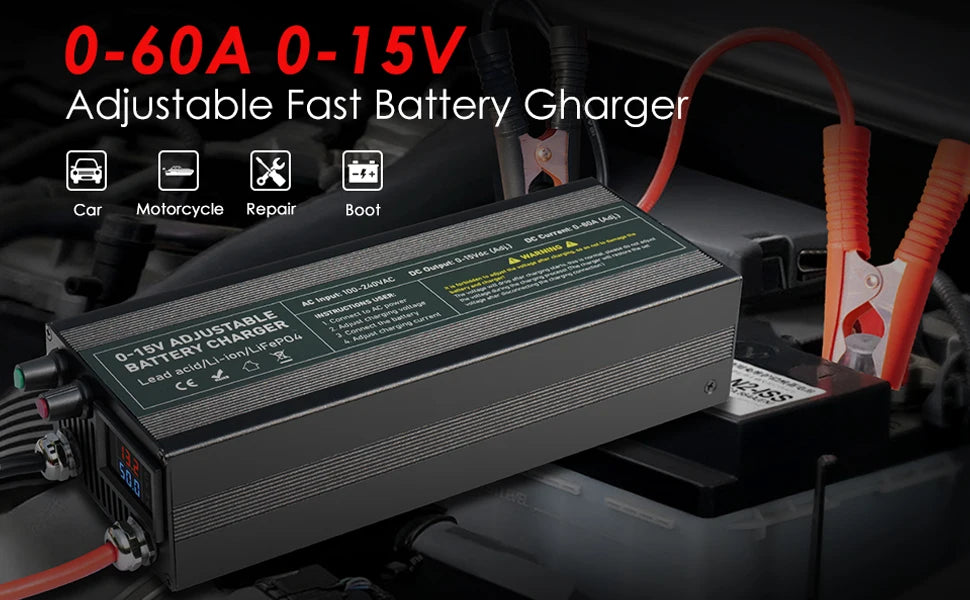

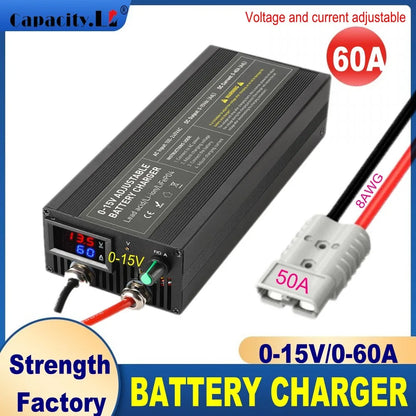

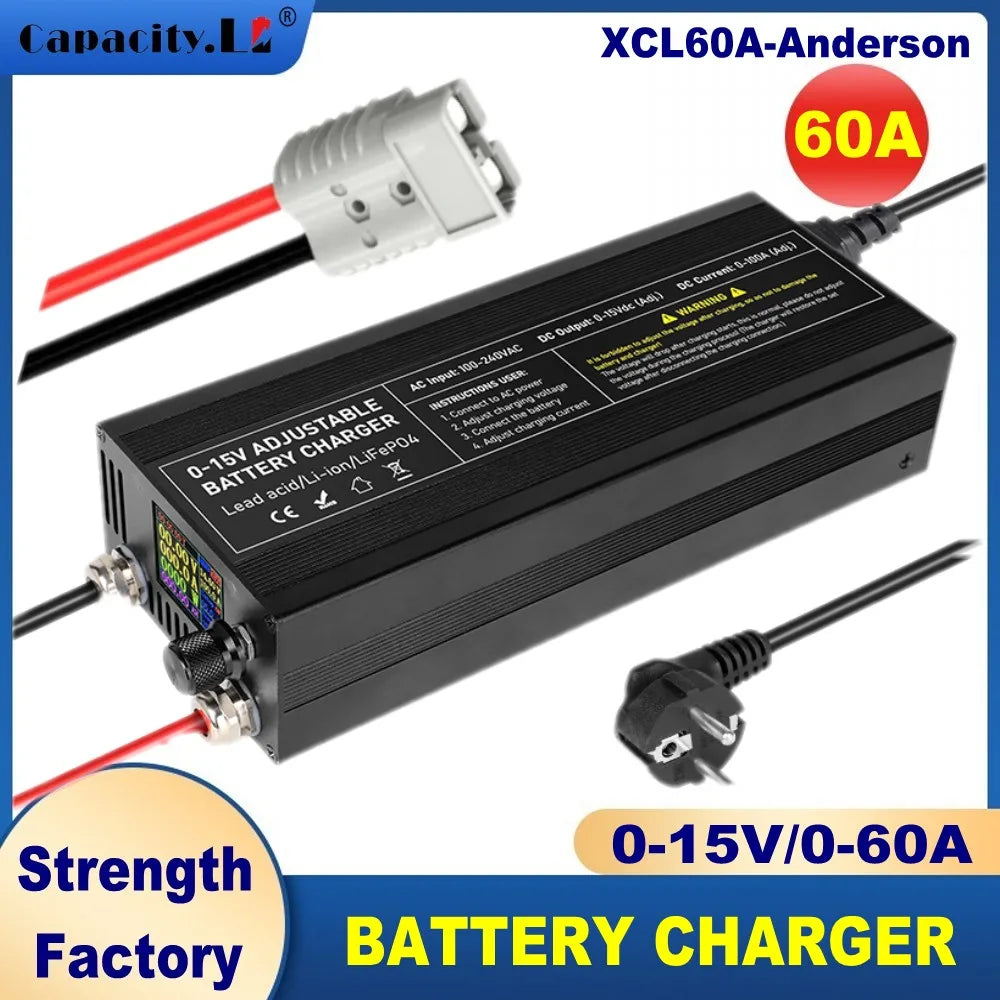

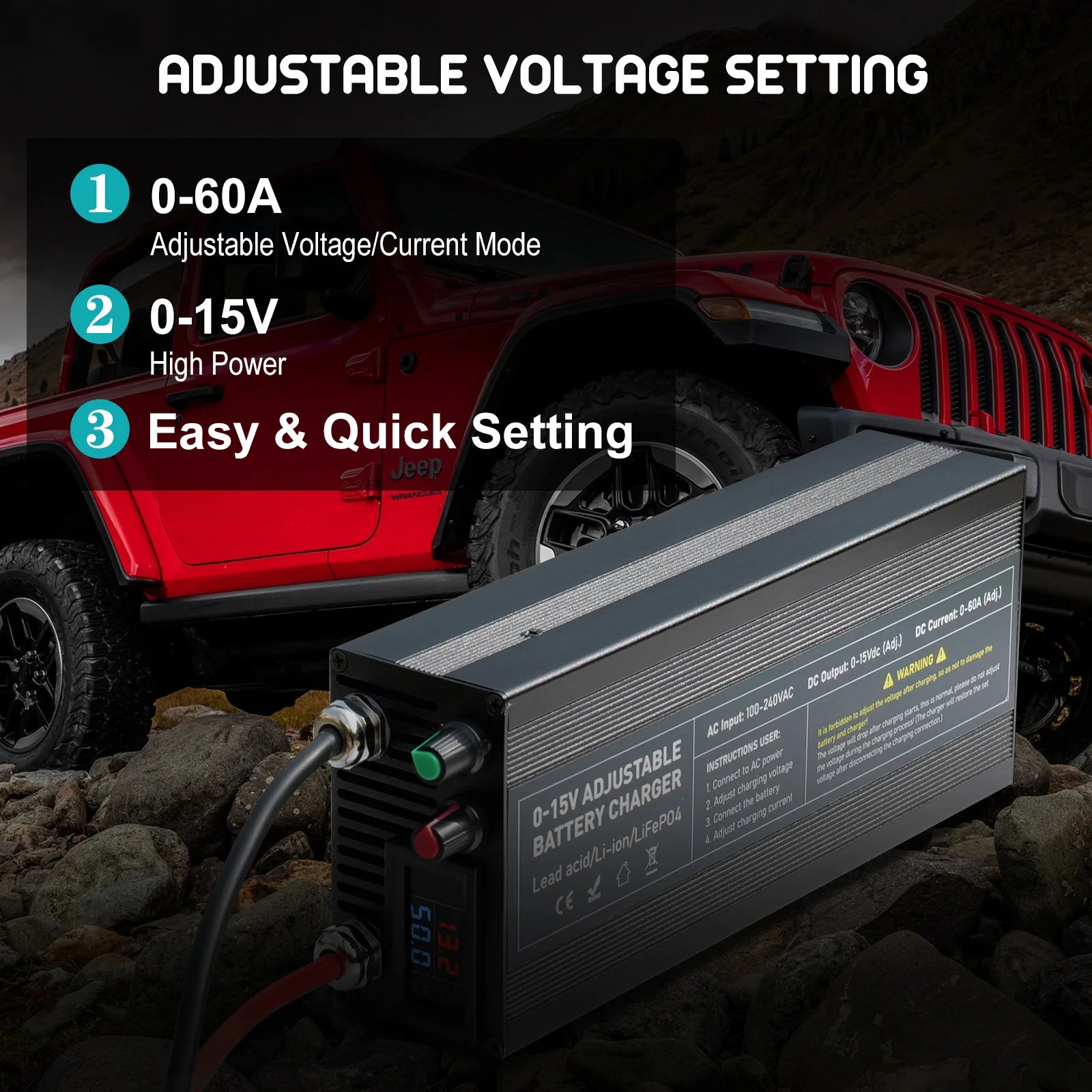

The following is a detailed introduction to the 60A multi coil spiral charger model

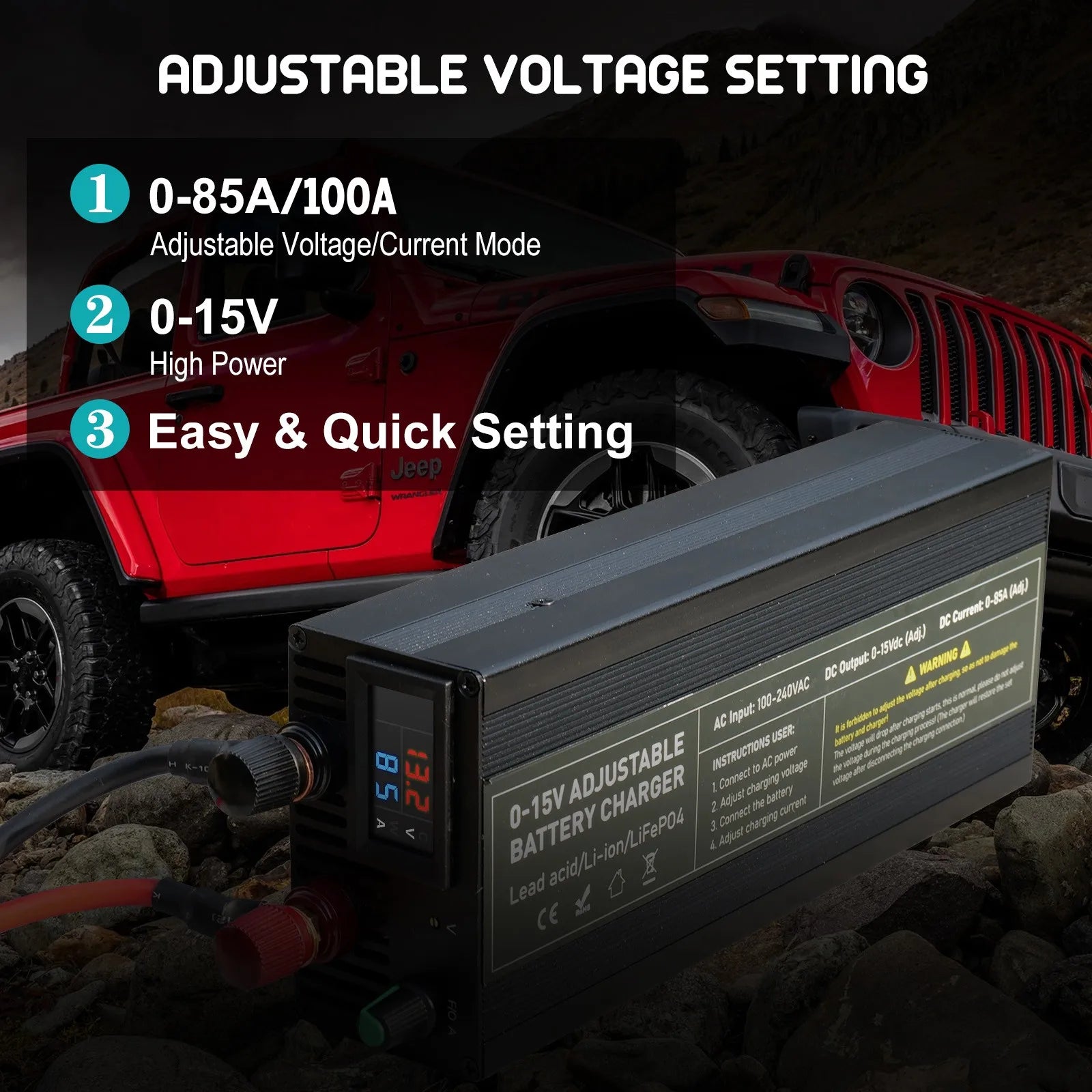

The following is a detailed introduction to the 85A/100A multi coil spiral charger model

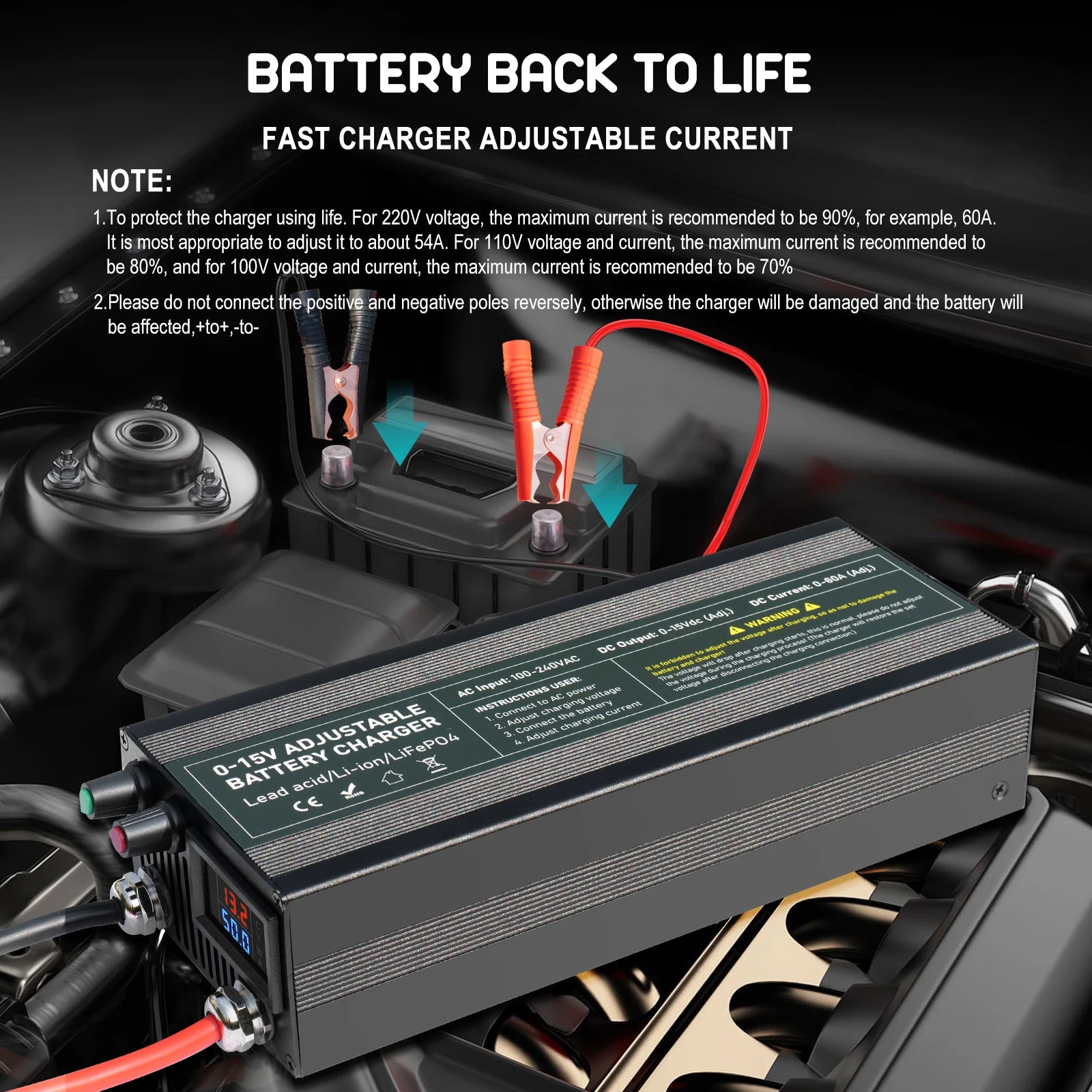

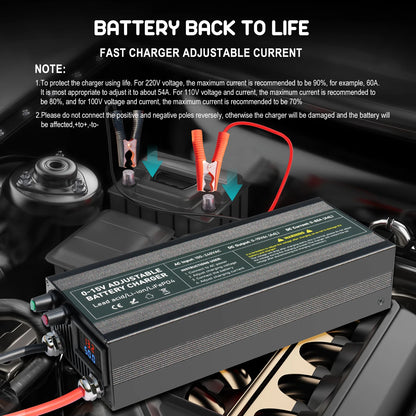

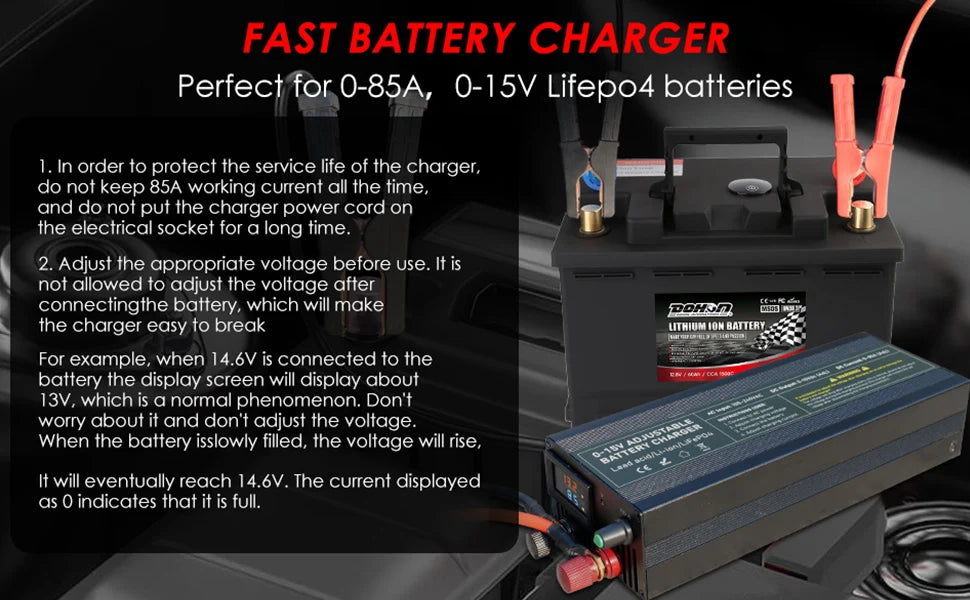

*To extend the service life of the charger. The charger voltage is 220V, and the maximum recommended current is 90%. For example, 60A is best adjusted to around 54A. 110V maximum recommended voltage current 80%, 100V maximum recommended voltage current 70%
Accessory host/power cord (optional for European, American, British, and Australian standards)/clip (optional)/Anderson (optional)/copper nose (partially optional)

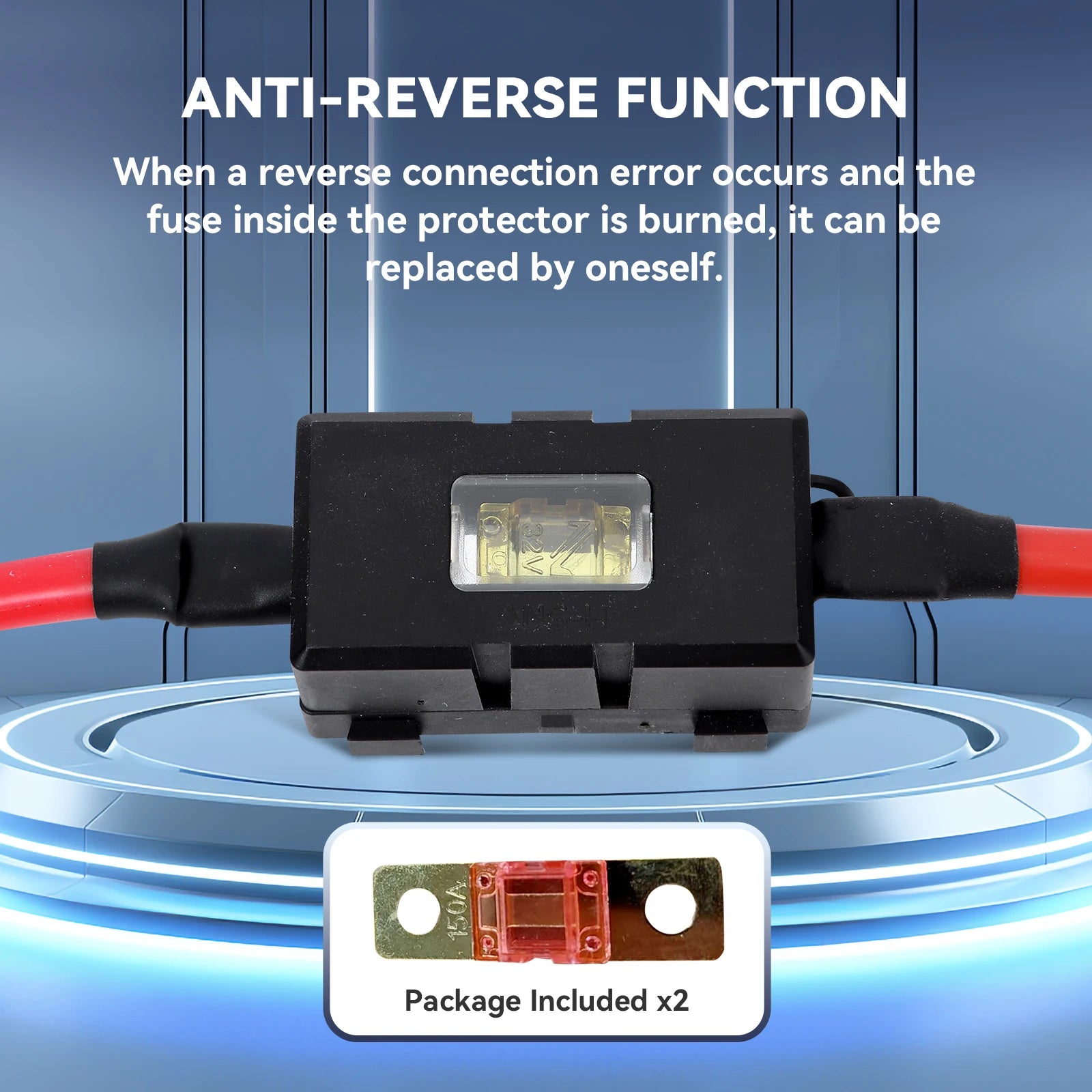

Attention: (Important thing to repeat three times!) The positive and negative poles of the battery cannot be reversed+TO+- TO - (red positive+; black negative -). Reverse connection can cause damage (damage cannot be guaranteed).
